Rittal 8645500

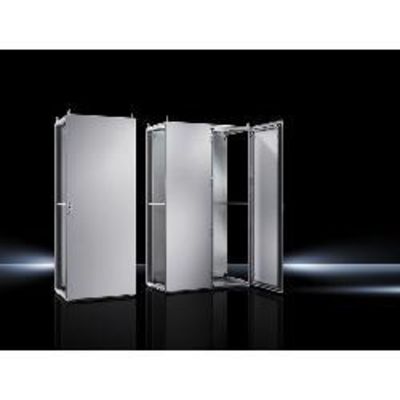

Rittal 8645500 TS 8 1-Door Baying System Enclosure, 24 in W x 20 in D x 55 in H, NEMA 12/IP55, Carbon Steel
Enclosure General Purpose
6559954
8645500
Rittal
$0.00
/ ea
- Capacity: 1500
- Color: Light Gray
- Cover Type: Hinged
- Depth: 20
- Finish: Powder Coated
- Height: 55
- Lock: 3 mm Double Bit
- Material: Carbon Steel
- Mounting Type: Floor
- Nema Rating: NEMA 12/IP55
- Series: TS 8
- Type: 1-Door
- Width: 24
Rittal Baying System Enclosure, 1-Door, Series: TS 8, 24 in Width, 20 in Depth, 55 in Height, NEMA 12/IP55, Hinged Cover, Lock: 3 mm Double Bit, 1500 lb, Floor Mount, Carbon Steel, Powder Coated, Light Gray
- Features
- Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation
- It also allows a baying arrangement on all sides
- In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety
- RAL 7035 light gray color
- 1.5 mm THK carbon steel enclosure frame, 1.5 mm THK carbon steel roof, 2 mm carbon steel door, 1.5 mm carbon steel rear wall, 1.5 mm carbon steel base plates, 3 mm carbon steel mounting plate
- Dipcoat primed enclosure frame, door, roof and rear panel, powder-coated on the outside, textured paint, zinc-plated mounting plate and base plates
- 51 in H x 20 in W mounting plate
