Rittal 8808501

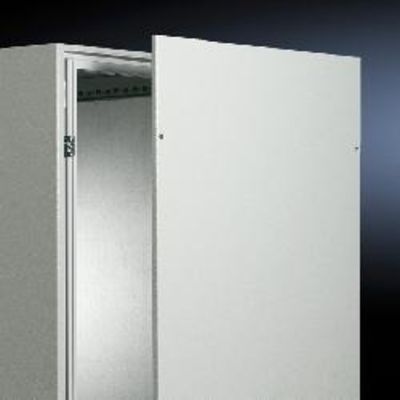

Rittal 8808501 TS8 Baying Enclosure System With Door, 800 mm W x 800 mm D, IP55 NEMA Rating, Carbon Steel
Enclosure General Purpose
7148853 8808501
Rittal
$0.00 / ea

Rittal 8808501
  • Capacity: 1400
  • Color: Light Gray
  • Depth: 800
  • Finish: Dipcoat Primed/Powder Coated/Zinc Plated
  • Lock: 4-Point
  • Material: Carbon Steel
  • Mounting Type: Freestanding
  • Nema Rating: IP55
  • Series: TS8
  • Width: 800
Rittal Baying Enclosure System, Series: TS8, 800 mm Width, 800 mm Depth, IP55, 4-Point Lock, 1400 kg, Freestanding Mount, Carbon Steel, Dipcoat Primed/Powder Coated/Zinc Plated, Light Gray
QTY
Add to Wishlist
  • Features
  • Full flexibility with the use of accessories, thanks to a fully symmetrical frame section, with identical accessories for the width and depth
  • High protection category of up to IP66 NEMA 4/4X
  • Bayable on all sides
  • Door hinge is easily swapped to the opposite side without machining
  • Automatic potential equalization via the assembly components with all enclosure panels and gland plates
  • Enclosure has a high load bearing capacity of up to 1400 kg
  • Simple, fast assembly of the mounting plate
  • Slide rails may be removed and installed in the side frame section
  • Effective space utilization by using the inner and outer mounting level of the frame section
  • The integral enclosure protection channel prevents the ingress of dirt and water when the door is opened
  • Maximum space for cable entry with multiple divided gland plates
  • Optimum sealing, 4-point lock system
  • Without mounting plate
