Rittal 8901680

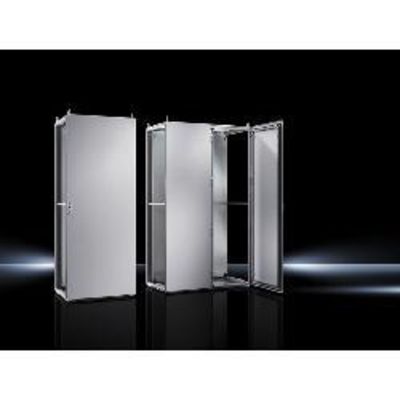

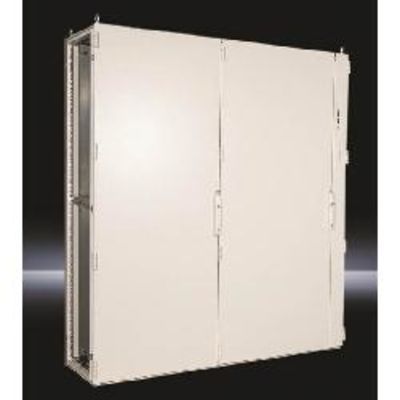

Rittal 8901680 TS 8 Double Door Enclosure, 1800 mm W x 500 mm D x 2000 mm H, NEMA 12, Carbon Steel
Enclosure General Purpose
6831212 8901680
Rittal
$0.00 / ea

Rittal 8901680
  • Color: Light Gray
  • Depth: 500
  • Height: 2000
  • Material: Carbon Steel
  • Mounting Type: Freestanding
  • Nema Rating: NEMA 12
  • Panel Size: 59 in W x 75 in H
  • Series: TS 8
  • Type: Double Door
  • Width: 1800
Rittal Enclosure, Double Door, Series: TS 8, 1800 mm Width, 500 mm D, 2000 mm Height, NEMA 12, 59 in W x 75 in H Panel, Freestanding Mount, Carbon Steel, Light Gray
QTY
Add to Wishlist
  • Features
  • The modular design allows for efficient system updates, flexible baying options and virtually endless configurations, all based on a robust 16-fold tubular frame system
  • The frame can hold weight loads up to 1500 lb on the mounting panel and features multi-level mounting capability for unsurpassed flexibility
  • The 25 mm hole pattern allows components and accessories to be mounted in three directions by height, width and depth which provides maximum space utilization (up to 30% more available space than traditional NEMA style enclosures of equal dimension)
  • The door is strengthened with an attached frame which includes holes on a 25 mm pitch pattern for the attachment of ducts, cable harnesses, wiring plan pockets and much more
  • The gasketed roof is secured with removable eyebolts that screw directly to the enclosure frame to seal out dirt and moisture
  • IP55 degree of protection
