Rittal 9851515

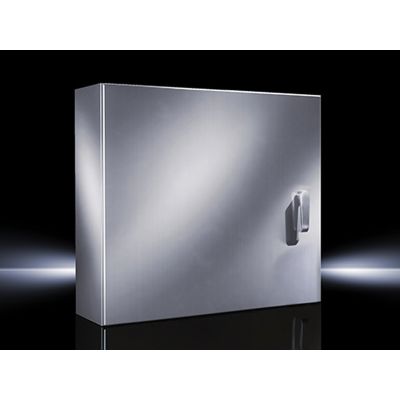

Rittal 9851515 WM Series 1-Door Compact Non-Disconnect Enclosure, 24 in L x 24 in W x 12 in D, NEMA 12/3R/4X/IP55/IP66, 316 Stainless Steel
Enclosure General Purpose
7762913
9851515
Rittal
$0.00
/ ea
- Color: Light Gray
- Cover Type: Left Hand Hinged
- Depth: 12
- Finish: Brushed
- Insulation: Polyurethane Seal
- Length: 24
- Lock: 3-Point Latch
- Material: 316 Stainless Steel
- Mounting Type: Wall
- Nema Rating: NEMA 12/3R/4X/IP55/IP66
- Panel Size: 22 in W x 23 in H
- Series: WM Series
- Type: 1-Door Compact Non-Disconnect
- Width: 24
Rittal Enclosure, 1-Door Compact Non-Disconnect, Series: WM Series, 24 in Length, 24 in Width, 12 in Depth, NEMA 12/3R/4X/IP55/IP66, Left Hand Hinged Cover, 22 in W x 23 in H Panel, Lock: 3-Point Latch, Polyurethane Seal, Wall Mount, 316 Stainless Steel, Brushed, Light Gray
- Features
- Door bars for wire management and component mounting
- Foam in place gasketing assures a continuous seal
- Removable hinge pins allow easy door removal for modification
- Opposite side has pre-drilled holes for convenient door reversal
- Ground provisions
- Panel depth adjustable mounting provisions
- Knife edge flange trough collar diverts liquids, dirt and dust
- Fully welded construction, powder coated RAL7035 light gray
- The WM series ensures NEMA protection through a secure locking system, foamed-in place gasket and knife edge sealing surface
- Stylish, modern design, outstanding strength, stability, protection against contaminates, dust protection
