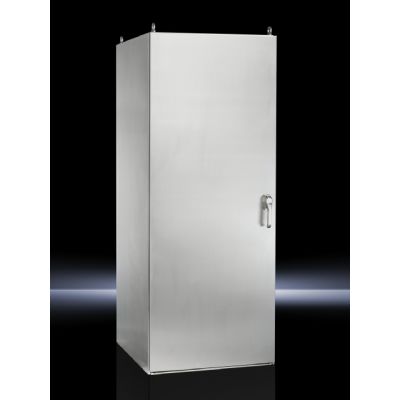

Rittal 9977467
Rittal Corp TS 8 free-standing enclosures, Stainless steel, material: Enclosure frame: Stainless steel 1.4404 (AISI 316L), 1.5 mm, Roof Stainless steel 1.4404 (AISI 316L), 1.5 mm, exterior brushed, Door: Stainless steel 1.4404 (AISI 316L), 2.0 mm, exterior brushed, Rear panel: Stainless steel 1.4404 (AISI 316L), 1.5 mm, exterior brushed, Gland plate: Stainless steel 1.4404 (AISI 316L), 2.5 mm, surface: Enclosure frame and gland plates: Uncoated, Door, roof and rear panel: Exterior brushed, grain size 400, Mounting plate: Zinc-plated, supply includes: Gland plate, description: Baying systems TS 8 with mounting plate. Protection category IP 66 (UL Type 4X). Manufactured in stainless steel 1.4404 (AISI 316L) Enclosure widths include 600 and 800 mm.
Supporting Information
- 30 more available mounting space than traditional unibody enclosures of equal dimensions|4-point latching system and continuous foamed-in-place gasket provide a water and dust proof environmental seal|Padlockable handle that provides both easy access and security|Full functionality and expandability of the TS enclosure series|A large assortment of internal accessories that allow for three dimensional mounting on all internal surfaces|Internally removable floor panel that simplifies conduit and wiring installation|Depth adjustable and removable zinc plated carbon steel mounting panel included with enclosure|Eyebolts which allow for flexibility during transportation and installation|Spring loaded, quick release hinges that enable fast and easy door removal and replacement|Stress cracking, pitting, crevice corrosion resistant
- Brand: Rittal
