Woodhead 4008

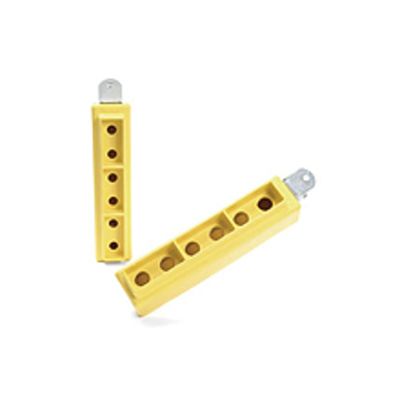

Woodhead reg; Super-Safeway reg; 4008 130126 Pushbutton Pendant Enclosure, 21-1/2 in L x 3-1/2 in W, Rubber
Enclosure Pushbutton
243854
4008
Woodhead
$0.00
/ ea
- Capacity: 30
- Length: 21-1/2
- Material: Rubber
- Mounting Type: Pendant
- Series: 130126
- Width: 3-1/2
Woodhead® Super-Safeway® Pushbutton Pendant Enclosure, Series: 130126, 21-1/2 in Length, 3-1/2 in Width, 30 mm Capacity, Pendant Mounting, Rubber
- Features
- Unique, industry-leading, NEoTEX® Paracril OZO rubber pendant enclosures yield the best performance for abrasion, chemical exposure and temperature extremes
- Accepts industry standard 30 mm and 22 mm pushbutton and pilot devices
- Protective ribs provide recess for pushbutton operators and pilot lights preventing unintended operation and device protection
- Metal suspension bracket allows for messenger cable to support pendant and provide longer operational life of the system
- MAX-LOC® strain relief included as standard to provide maximum cable pullout resistance
- Internal ground strap common to all pilot devices and cable entry provides for safe electrical operation
- Steel zinc plated messenger cable bracket and cover screws
- MAX-LOC® nylon strain relief with rubber grommet cable connection
- Stainless steel cover to housing screws
- Brass ground strip
- 5/8 to 1 in cable diameter
- F4 body, 1 in cable grip
- Metal cable grip nut
- 8-buttons
- Dimensional data for enclosure with 8 openings
