Hubbell Wiegmann SSJW64

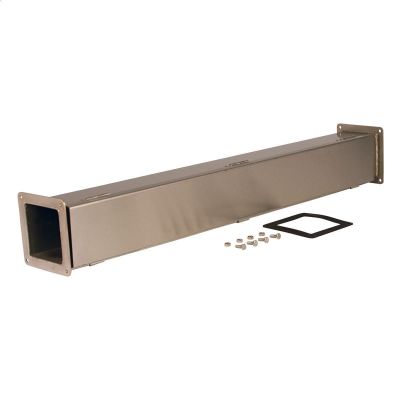

WIEGMANN SSJW64 SSJW SERIES FEED-THROUGH STRAIGHT SECTION WIREWAY, 48 IN L X 6 IN W X 6 IN H, HINGED COVER, 304 STAINLESS STEEL
Enclosure Wiring Trough
4293570 SSJW64
Hubbell Wiegmann
$0.00 / ea

Hubbell Wiegmann SSJW64
  • Color: Silver
  • Cover Type: Hinged
  • Finish: Smooth Grained
  • Height: 6
  • Length: 48
  • Material: 304 Stainless Steel
  • Nema Rating: NEMA 4X/12
  • Series: SSJW Series
  • Type: Feed-Through Straight Section
  • Width: 6
Wiegmann Wireway, Feed-Through Straight Section, Series: SSJW Series, 48 in Length, 6 in Width, 6 in Height, Hinged Cover, NEMA 4X/12, 304 Stainless Steel, Silver, Smooth Grained
QTY
Add to Wishlist
  • Features
  • Bodies and covers are fabricated from 14 ga 304 stainless steel
  • Flange ends are fabricated from 10 ga 304 stainless steel
  • Features hinged top for easy wiring
  • Continuously welded seams ground smooth, no holes or knockouts
  • Smooth rounded edges on all sections and fittings prevent damage to the wire insulation
  • Closed cell oil-resistant neoprene strip gasket
  • Heavy butt hinges and external stainless steel screw clamps to insure a complete seal between covers and bodies
  • Screw clamps are quick and easy to operate with no loose parts
  • Solid oil-resistant gasket is furnished to provide complete seal at each joint
