Littelfuse LFR256001C
Littelfuse POWR-GARD LFR256001C Non-Indicating Fuse Block, 250 VAC, 600 A, Class: R, 4 AWG to 500 kcmil Al/Cu Wire, 1 Poles
Distribution Blocks
7298252
LFR256001C
Littelfuse
$0.00
/ ea
- Amperage Rating: 600
- Class: R
- Connection Type: Box Lug
- Dimensions: 14 in H x 4.5 in W x 4.4 in D
- Fuse Diameter: 2.874
- Fuse Length: 10.374
- Mounting Type: Bolted-In
- Number of Poles: 1
- Series: LFR
- Suitable For Use With: FLNR/FLNR_ID, KLNR and LLNRK Series Fuse
- Temperature Rating: 130
- Type: Non-Indicating
- Voltage Rating: 250
- Wire size: 4 AWG to 500 kcmil Al/Cu

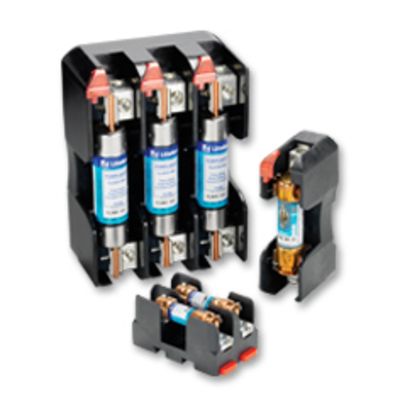

The new Littelfuse Class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
- Features
- Indication offered on most 250 and 600 VAC versions
- DIN rail releasable for all non-knife blade style fuses
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Universal mounting holes make for easy replacement
- Clip designs maximize electrical contact and minimize heat rise
- Reinforcing clips are standard on all class R fuse blocks
- Solid/stranded wire
