Littelfuse LEBAA

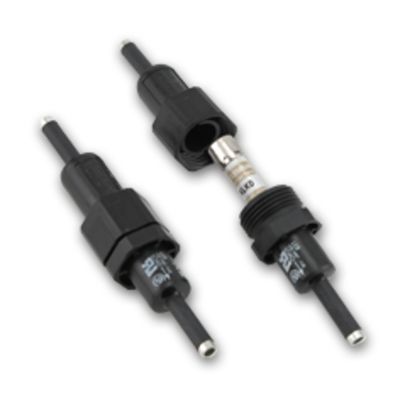

Littelfuse LEBAA Watertight Fuse Holder, 600 VAC/VDC, 30 A, 12 to 8 AWG Wire, 1 Pole
Fuse Holders and Blocks
39673 LEBAA
Littelfuse
$0.00 / ea

Littelfuse LEBAA
  • Amperage Rating: 30
  • Class: CC
  • Connection Type: Crimped
  • Dimensions: 4-1/2 in L
  • Fuse Diameter: 13/32
  • Fuse Length: 1-1/2
  • Material: Fiberglass
  • Mounting Type: Panel
  • Number of Poles: 1
  • Series: LEB
  • Suitable For Use With: CCMR, KLDR, KLKR, BLF, BLN, FLM, FLQ, KLK, KLKD Series and Midget Fuse
  • Type: Watertight
  • Voltage Rating: 600
  • Wire size: 12 to 8
Littelfuse Fuse Holder, Watertight, Series: LEB, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Crimped, 12 to 8 AWG Wire, Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, For Use With: CCMR, KLDR, KLKR, BLF, BLN, FLM, FLQ, KLK, KLKD Series and Midget Fuse, Fiberglass, 4-1/2 in L
QTY
Add to Wishlist
  • Features
  • The fuse holders are designed to be touch-safe and flexible for use in a variety of applications
  • Design increases safety by facilitating individual device disconnection for easy servicing, eliminating shock risk
  • Increases efficiency by preventing faulted ballast from severely damaging fixture or device
  • Designed to meet IP67 touch-safe standards
  • Variety of terminations available for flexible design
  • Insulating boots available for harsh environments
  • Copper terminal
  • (1) 12 to 8 AWG and (2) 12 AWG load/line wire size
