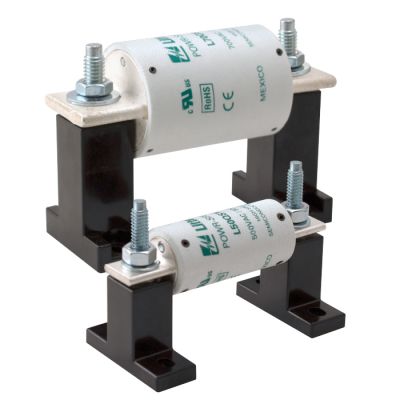

Littelfuse LSCR001
Littelfuse LSCR Series is a comprehensive line of modular fuse blocks, designed to accommodate a wide range of High-Speed and UL Power Fuses. These LSCR Series blocks have modular stud type design that enables easy mounting in panel boards. LSCR Series blocks are CE Certified and RoHS Compliant.
Supporting Information
- Modular design reduces inventory requirements|Sold in pairs for convenience|Supplied with nut and belleville washer|Constructed of molded phenolic (with plated steel studs) provide greater heat dissipation|302 deg F maximum base temperature|61 in-lb, 6.9 Nm stud torque|1/4-20 UNC terminal
- Modular design reduces inventory requirements
- Sold in pairs for convenience
- Supplied with nut and belleville washer
- Constructed of molded phenolic (with plated steel studs) provide greater heat dissipation
- 302 deg F maximum base temperature
- 61 in-lb, 6.9 Nm stud torque
- 1/4-20 UNC terminal
- Brand: LittelfuseAmperage Rating: 400Class: TColor: BlackDimensions: 47.75 mm L x 17.78 in W x 62.87 mm H
