NSI 1104B

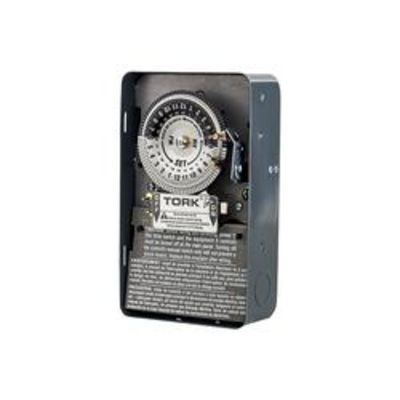

NSI Tork Mechanical Time Switch, ON/OFF, Series: 1100, Operation Mode: 24 hr, 208 to 277 VAC, 40 A, 2 hp, 5 hp, 2 Pole, DPST Contact Form, 24 hr Time Setting, NEMA 1 Enclosure, -40 to 165 deg F, Threaded Mounting, 4.687 in L x 2.937 in W x 7.937 in H Dimensions
Supporting Information
- Easy Scheduling - TORK 24 hr time switches allow you to set automatic schedules for appliances that need to be run at the same time every day|Repairable Units - Mechanical time switches can be repaired when components reach the end of their service life saving you money on replacement units and producing less overall waste|Built to Last - A metal lockable enclosure which protects inner gears and wiring plus an operating range of -40 to 165 deg F (-40 to 74 C) makes this timer reliable under pressure|Flexible Automations - Mechanical time switches are compatible with up to 12 pairs of trippers for automating an advanced 24 hr ON/OFF schedule
- 60 Hz frequency
- Minimum On is setting 20 min with a minimum Off setting of 75 min
- Dial accommodates up to 12 pairs of trippers
- 14 to 8 AWG terminal range
- 3 W maximum power consumption
- Lockable hasp enclosure
- Metal indoor enclosure
- Brand: NSIAmperage Rating: 40Contact Form: DPSTDimensions: 4.687 in L x 2.937 in W x 7.937 in HEnclosure Type: NEMA 1Horsepower: 2 hp, 5 hpMounting Type: ThreadedNumber of Poles: 2Operation Mode: 24Series: 1100Temperature Rating: -40 to 165
