Ideal 83-2351

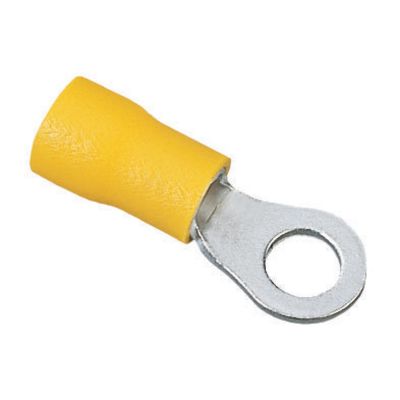

IDEAL 83-2351 1-Hole Vinyl Insulated Ring Terminal, 12 to 10 AWG, 1/4 in Stud, Tin Plated Brass
Lug Compression Connectors
5133542 83-2351
Ideal
$0.00 / ea

Ideal 83-2351
  • Barrel Size: 0.512 in L
  • Barrel Type: Beveled/Butted Seam
  • Color: Yellow
  • Conductor size: 12 to 10
  • Material: Tin Plated Brass
  • Overall Length: 1.167
  • Stud Size: 1/4
  • Temperature Rating: 75
  • Tongue Size: 0.472 in W
  • Type: 1-Hole Vinyl Insulated
  • Voltage Rating: 600
IDEAL, Ring Terminal, Vinyl Ring, Cable Size: 12 - 10 AWG, Number Of Holes: 1, Stud Size: 1/4 IN, Material: Tin Plated Brass, Insulation: Vinyl Insulated
QTY
Add to Wishlist
  • Features
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Color coded insulation and wire range stamped on terminal for easy identification
