Ideal 83-7071

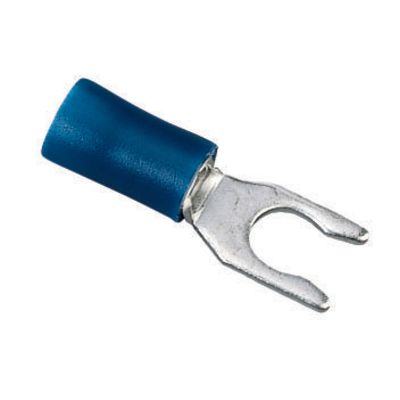

IDEAL 83-7071 Insulated Snap Vinyl Spade Terminal, 16 to 14 AWG, 10 in Stud, Tin Plated Brass
Lug Compression Connectors
6883065
83-7071
Ideal
$0.00
/ ea
- Barrel Size: 0.394 in L
- Barrel Type: Beveled/Butted Seam
- Color: Blue
- Conductor size: 16 to 14
- Material: Tin Plated Brass
- Overall Length: 0.827
- Stud Size: 10
- Temperature Rating: 75
- Tongue Size: 0.319 in W
- Type: Insulated Snap Vinyl
- Voltage Rating: 600
IDEAL, Spade Terminal, Vinyl Snap Spade, Cable Size: 16 - 14 AWG, Stud Size: 10 IN, Insulation: Vinyl Insulated, Material: Tin Plated Brass
- Features
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Tin plated brass construction for corrosion resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
- Color coded insulation and wire range stamped on terminal for easy identification
