Panduit LCAF250-12-X

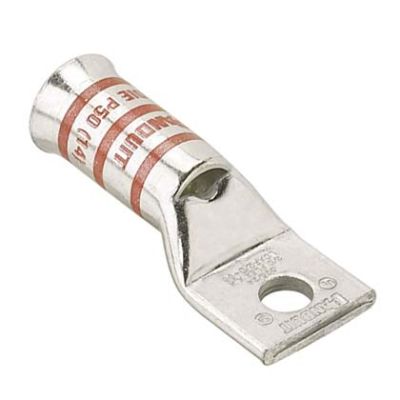

Panduit Pan-Lug LCAF250-12-X 1-Hole Compression Connector Lug, 250 kcmil, 262.6 kcmil Flexible Copper Conductor, Die Code: P66, 42.767 in Stud, Tin Plated Copper
Lug Compression Connectors
6891758
LCAF250-12-X
Panduit
$0.00
/ ea
- Barrel Size: 0.7 in ID x 1.02 in OD x 1.65 in L
- Barrel Type: Standard
- Color: White
- Conductor size: 250 kcmil, 262.6 kcmil
- Conductor Type: Flexible Copper
- Die Code: P66
- Material: Tin Plated Copper
- Mounting Hole Size: 1-3/4
- Overall Length: 3.3
- Series: LCAF
- Specifications: 1-3/4 in L Wire Strip
- Stud Size: 42.767
- Temperature Rating: 90
- Tongue Size: 1.28 in W x 0.17 in THK
- Tongue Type: Flared/Straight
- Type: 1-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 250 kcmil, 262.6 kcmil Conductor, Die Code: P66, 35 kV, 42.767 in Stud, Flared/Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 3.3 in Overall Length, Standard Barrel, 0.7 in ID x 1.02 in OD x 1.65 in L Barrel, 1-3/4 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, White
- Features
- Color-coded bands for proper die selection and crimp placement
- Can be used with flex conductor class K, M and diesel locomotive
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Inspection window to assure complete conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
