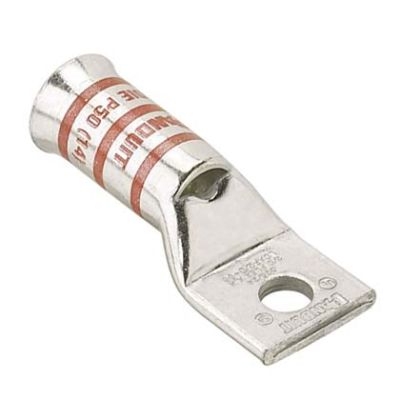

Panduit LCAF3/0-12-X

Panduit Pan-Lug LCAF3/0-12-X 1-Hole Compression Connector Lug, 3/0 AWG Flexible Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper
Lug Compression Connectors
6927937 LCAF3/0-12-X
Panduit
$0.00 / ea

Panduit LCAF3/0-12-X
  • Barrel Size: 0.57 in ID x 0.81 in OD x 1.35 in L
  • Barrel Type: Standard
  • Color: Purple
  • Conductor size: 3/0
  • Conductor Type: Flexible Copper
  • Die Code: P54
  • Material: Tin Plated Copper
  • Mounting Hole Size: 14-3/8
  • Overall Length: 2.83
  • Series: LCAF
  • Specifications: 1-7/16 in L Wire Strip
  • Stud Size: 1/2
  • Temperature Rating: 90
  • Tongue Size: 1.06 in W x 0.14 in THK
  • Tongue Type: Flared/Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 3/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Flared/Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 2.83 in Overall Length, Standard Barrel, 0.57 in ID x 0.81 in OD x 1.35 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 14-3/8 in Mounting Hole, Tin Plated Copper, Purple
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Can be used with flex conductor class K, M and diesel locomotive
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • Inspection window to assure complete conductor insertion
  • Tin plated to inhibit corrosion
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
