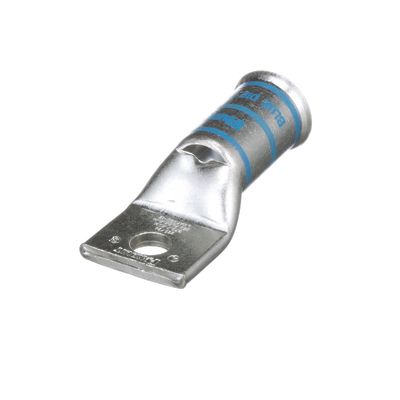

Panduit LCAF350-12-6

Panduit Pan-Lug LCAF350-12-6 1-Hole Compression Lug, 350 kcmil, 373.7 kcmil Flexible Copper Conductor, Die Code: P76, 42.767 in Stud, Copper
Lug Compression Connectors
7034338 LCAF350-12-6
Panduit
$0.00 / ea

Panduit LCAF350-12-6
  • Barrel Size: 0.84 in ID x 1.22 in OD x 1.85 in L
  • Barrel Type: Flared/Standard
  • Color: Blue
  • Conductor size: 350 kcmil, 373.7 kcmil
  • Conductor Type: Flexible Copper
  • Die Code: P76
  • Material: Copper
  • Mounting Hole Size: 19-3/8
  • Overall Length: 3.65
  • Series: LCAF
  • Specifications: 1-15/16 in L Wire Strip, Tin Plated Finish
  • Stud Size: 42.767
  • Temperature Rating: 90
  • Tongue Size: 1.54 in W x 0.22 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAF, Flexible Copper Conductor, 350 kcmil, 373.7 kcmil Conductor, Die Code: P76, 35 kV, 42.767 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 3.65 in Overall Length, Standard/Flared Barrel, 0.84 in ID x 1.22 in OD x 1.85 in L Barrel, Specifications: 1-15/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 19-3/8 in Mounting Hole, Copper, Blue
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Can be used with flex conductor class K, M and diesel locomotive
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • Inspection window to assure complete conductor insertion
  • Tin-plated to inhibit corrosion
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
