Panduit LCAX8-38-L

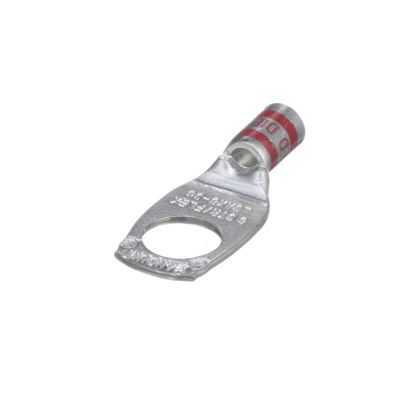

Panduit Pan-Lug LCAX8-38-L 1-Hole Compression Connector Lug, 8 AWG Flexible Copper Conductor, Die Code: P21, 3/8 in Stud, Tin Plated Copper
Lug Compression Connectors
7059402
LCAX8-38-L
Panduit
$0.00
/ ea
- Barrel Size: 0.18 in ID x 0.27 in OD x 0.42 in L
- Barrel Type: Standard
- Color: Red
- Conductor size: 8
- Conductor Type: Flexible Copper
- Die Code: P21
- Material: Tin Plated Copper
- Mounting Hole Size: 42.767
- Overall Length: 1.42
- Series: LCAX
- Specifications: 1/2 in L Wire Strip
- Stud Size: 3/8
- Temperature Rating: 90
- Tongue Size: 0.6 in W x 0.05 in THK
- Tongue Type: Straight
- Type: 1-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 3/8 in Stud, Straight Tongue, 0.6 in W x 0.05 in THK Tongue, 1.42 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, 1/2 in L Wire Strip, 90 deg C, 42.767 in Mounting Hole, Tin Plated Copper, Red
- Features
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
