Panduit LCAN2/0-56-X

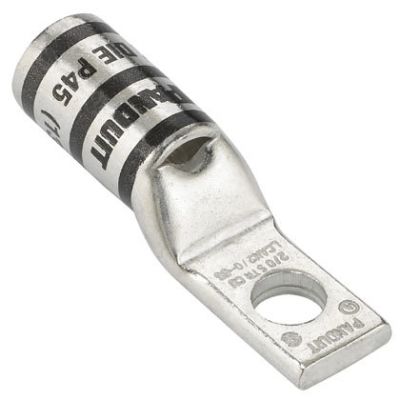

Panduit Pan-Lug LCAN2/0-56-X 1-Hole Compression Connector Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: P45, 5/16 in Stud, Tin Plated Copper
Lug Compression Connectors
7473992
LCAN2/0-56-X
Panduit
$0.00
/ ea
- Barrel Size: 0.45 in ID x 0.58 in OD x 0.98 in L
- Barrel Type: Inspection Window/Standard
- Color: Black
- Conductor size: 2/0
- Conductor Type: Stranded Copper
- Die Code: P45
- Material: Tin Plated Copper
- Mounting Hole Size: 1-1/16
- Overall Length: 2.09
- Series: LCAN
- Specifications: 1-1/16 in L Wire Strip
- Stud Size: 5/16
- Temperature Rating: 90
- Tongue Size: 0.58 in W x 0.14 in THK
- Tongue Type: Narrow/Straight
- Type: 1-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAN, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 5/16 in Stud, Narrow/Straight Tongue, 0.58 in W x 0.14 in THK Tongue, 2.09 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 1-1/16 in L Wire Strip, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Black
- Features
- Narrow tongue width for limited space application
- color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Tin-plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
