Panduit LCAN350-38-X

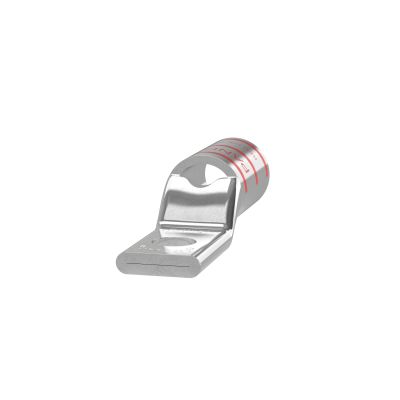

Panduit Pan-Lug LCAN350-38-X 1-Hole Compression Lug Connector With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: P71, 3/8 in Stud, Tin Plated Copper
Lug Compression Connectors
6899456 LCAN350-38-X
Panduit
$0.00 / ea

Panduit LCAN350-38-X
  • Barrel Size: 0.7 in ID x 0.88 in OD x 1.44 in L
  • Barrel Type: Inspection Window/Standard
  • Color: Red
  • Conductor size: 350
  • Conductor Type: Stranded Copper
  • Die Code: P71
  • Material: Tin Plated Copper
  • Mounting Hole Size: 1-1/2
  • Overall Length: 3
  • Series: LCAN
  • Specifications: 1-1/2 in L Wire Strip, Tin Plated
  • Stud Size: 3/8
  • Temperature Rating: 90
  • Tongue Size: 0.88 in W x 0.21 in THK
  • Tongue Type: Narrow/Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCAN, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.88 in W x 0.21 in THK Tongue, 3 in Overall Length, Standard/Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Red
QTY
Add to Wishlist
  • Features
  • Narrow tongue width for limited space application
  • color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
  • Tin-plated to inhibit corrosion
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
