Panduit LCAS8-14-L

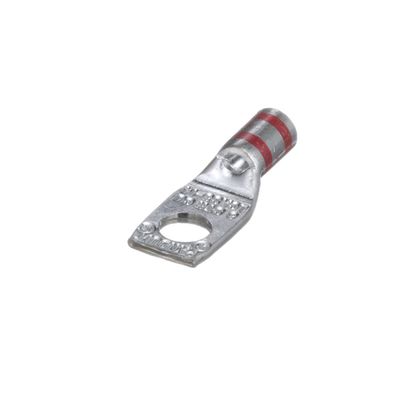

Panduit Pan-Lug LCAS8-14-L 1-Hole Compression Lug, 8 AWG Copper/Stranded Conductor, Die Code: P21, 1/4 in Stud, Copper
Lug Compression Connectors
6836519
LCAS8-14-L
Panduit
$0.00
/ ea
- Barrel Size: 0.18 in ID x 0.27 in OD x 0.42 in L
- Barrel Type: Short/Inspection Window
- Color: Red
- Conductor size: 8
- Conductor Type: Copper/Stranded
- Die Code: P21
- Material: Copper
- Mounting Hole Size: 1/2
- Overall Length: 1.2
- Series: LCAS
- Specifications: 1/2 in L Wire Strip, Tin Plated Finish
- Stud Size: 1/4
- Temperature Rating: 90
- Tongue Size: 0.48 in W x 0.07 in THK
- Tongue Type: Straight
- Type: 1-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Lug, 1-Hole, Series: LCAS, Copper/Stranded Conductor, 8 AWG Conductor, Die Code: P21, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 1.2 in Overall Length, Short/Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, Specifications: 1/2 in L Wire Strip, Tin Plated Finish, 90 deg C, 1/2 in Mounting Hole, Copper, Red
- Features
- Short barrel for limited space applications
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
