Panduit LCAX1/0-12-X

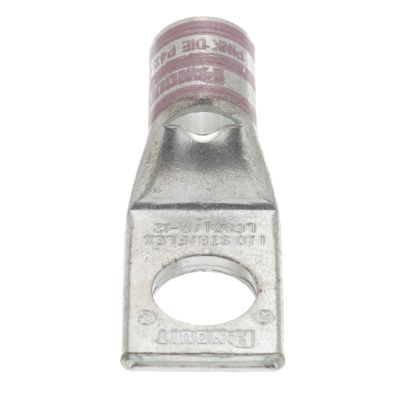

Panduit Pan-Lug LCAX1/0-12-X 1-Hole Compression Lug Connector With Inspection Window, 1/0 AWG Flexible Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated Copper
Lug Compression Connectors
7016548 LCAX1/0-12-X
Panduit
$0.00 / ea

Panduit LCAX1/0-12-X
  • Barrel Size: 0.45 in ID x 0.58 in OD x 0.72 in L
  • Barrel Type: Inspection Window/Standard
  • Color: Pink
  • Conductor size: 1/0
  • Conductor Type: Flexible Copper
  • Die Code: P42
  • Material: Tin Plated Copper
  • Mounting Hole Size: 3/4
  • Overall Length: 2.14
  • Series: LCAX
  • Specifications: 3/4 in L Wire Strip, Tin Plated
  • Stud Size: 1/2
  • Temperature Rating: 90
  • Tongue Size: 0.85 in W x 0.13 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCAX, Flexible Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.14 in Overall Length, Standard/Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.72 in L Barrel, Specifications: 3/4 in L Wire Strip, Tin Plated, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Pink
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Tin-plated to inhibit corrosion
  • An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
