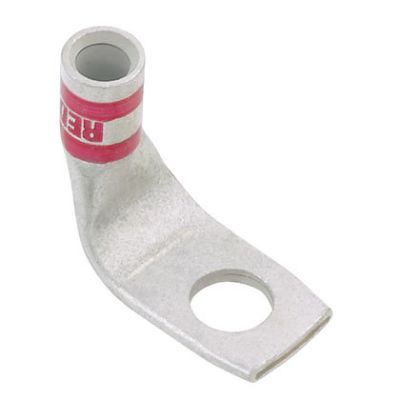

Panduit LCAX2/0-38F-X

Panduit Pan-Lug LCAX2/0-38F-X 1-Hole Compression Connector Lug, 2/0 AWG Flexible Copper Conductor, Die Code: P45, 42.95 in Stud, Tin Plated Copper
Lug Compression Connectors
7756018 LCAX2/0-38F-X
Panduit
$0.00 / ea

Panduit LCAX2/0-38F-X
  • Barrel Size: 0.51 in ID x 0.64 in OD x 0.83 in L
  • Barrel Type: Standard
  • Color: Black
  • Conductor size: 2/0
  • Conductor Type: Flexible Copper
  • Die Code: P45
  • Material: Tin Plated Copper
  • Mounting Hole Size: 42.954
  • Overall Length: 1.73
  • Series: LCAX
  • Specifications: 7/8 in L Wire Strip
  • Stud Size: 42.95
  • Temperature Rating: 90
  • Tongue Size: 0.84 in L x 0.96 in W x 0.13 in THK
  • Tongue Type: 90
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 42.95 in Stud, 90 deg Tongue, 0.84 in L x 0.96 in W x 0.13 in THK Tongue, 1.73 in Overall Length, Standard Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 42.954 in Mounting Hole, Tin Plated Copper, Black
QTY
Add to Wishlist
  • Features
  • Color coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Tin plated to inhibit corrosion
  • Inspection window to assure complete conductor insertion
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • 2/0 AWG class B, C, G, H, I, K, M and DLO conductor
