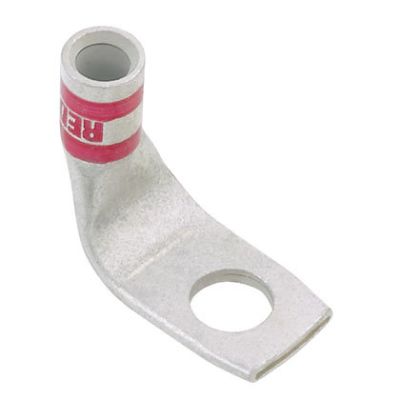

Panduit LCAX2/0-56F-X
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 42.491 in Stud, 90 deg Tongue, 0.78 in L x 0.96 in W x 0.13 in THK Tongue, 1.67 in Overall Length, Standard Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, 7/8 in L Wire Strip, 90 deg C, 42.954 in Mounting Hole, Tin Plated Copper, Black
Supporting Information
- Color coded bands for proper die selection and crimp placement|Generously beveled wire entry prevents bent back strands when inserting conductor into barrel|Tin plated to inhibit corrosion|Inspection window to assure complete conductor insertion|Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive|Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V|2/0 AWG class B, C, G, H, I, K, M and DLO conductor
- Color coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin plated to inhibit corrosion
- Inspection window to assure complete conductor insertion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- 2/0 AWG class B, C, G, H, I, K, M and DLO conductor
- Brand: PanduitBarrel Size: 0.51 in ID x 0.64 in OD x 0.83 in LBarrel Type: StandardColor: BlackConductor size: 2/0Conductor Type: Flexible CopperDie Code: P45
