Panduit LCAX450-58-6

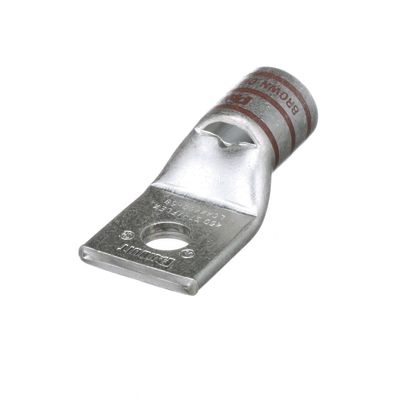

Panduit Pan-Lug LCAX450-58-6 1-Hole Compression Connector Lug, 450 kcmil, 444.4 kcmil Flexible Copper Conductor, Die Code: P87, 42.952 in Stud, Tin Plated Copper
Lug Compression Connectors
6832546 LCAX450-58-6
Panduit
$0.00 / ea

Panduit LCAX450-58-6
  • Barrel Size: 0.92 in ID x 1.19 in OD x 1.4 in L
  • Barrel Type: Standard
  • Color: Brown
  • Conductor size: 450 kcmil, 444.4 kcmil
  • Conductor Type: Flexible Copper
  • Die Code: P87
  • Material: Tin Plated Copper
  • Mounting Hole Size: 14-3/8
  • Overall Length: 3.73
  • Series: LCAX
  • Specifications: 1-7/16 in L Wire Strip
  • Stud Size: 42.952
  • Temperature Rating: 90
  • Tongue Size: 1.7 in W x 0.26 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Flexible Copper Conductor, 450 kcmil, 444.4 kcmil Conductor, Die Code: P87, 35 kV, 42.952 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 3.73 in Overall Length, Standard Barrel, 0.92 in ID x 1.19 in OD x 1.4 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, 14-3/8 in Mounting Hole, Tin Plated Copper, Brown
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Inspection window to assure complete conductor insertion
  • Tin plated to inhibit corrosion
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
