Panduit LCAX6-14-L

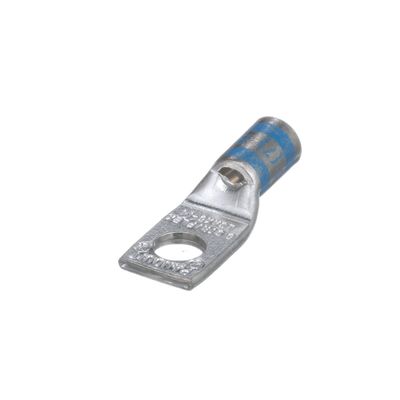

Panduit Pan-Lug LCAX6-14-L 1-Hole Compression Lug Connector With Inspection Window, 6 AWG Flexible Copper Conductor, Die Code: P24, 1/4 in Stud, Tin Plated Copper
Lug Compression Connectors
6926319 LCAX6-14-L
Panduit
$0.00 / ea

Panduit LCAX6-14-L
  • Barrel Size: 0.22 in ID x 0.31 in OD x 0.48 in L
  • Barrel Type: Inspection Window/Standard
  • Color: Blue
  • Conductor size: 6
  • Conductor Type: Flexible Copper
  • Die Code: P24
  • Material: Tin Plated Copper
  • Mounting Hole Size: 9/16
  • Overall Length: 1.28
  • Series: LCAX
  • Specifications: 9/16 in L Wire Strip, Tin Plated
  • Stud Size: 1/4
  • Temperature Rating: 90
  • Tongue Size: 0.48 in W x 0.08 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCAX, Flexible Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 1.28 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, Specifications: 9/16 in L Wire Strip, Tin Plated, 90 deg C, 9/16 in Mounting Hole, Tin Plated Copper, Blue
QTY
Add to Wishlist
  • Features
  • Color-coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Tin-plated to inhibit corrosion
  • An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
