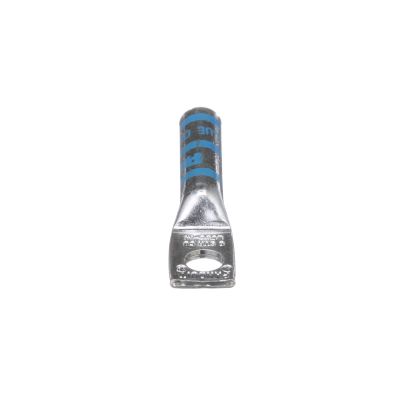

Panduit LCB6-14-L
The LCB6-14-L Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Supporting Information
- The long barrel maximizes the number of crimps and provides premium wire pullout strength and performance|color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection|Enclosed barrel prevents corrosive material from entering barrel when used in harsh environment|Tin-plated to inhibit corrosion|Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V|The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel
- Brand: PanduitBarrel Size: 1.07 in LBarrel Type: Long Without Inspection WindowColor: BlueConductor size: 6Conductor Type: CopperDie Code: P24Dimensions: 1.93 in L x 0.48 in WMaterial: Tin Plated CopperMounting Hole Size: 01/01/2004Overall Length: 1.93
