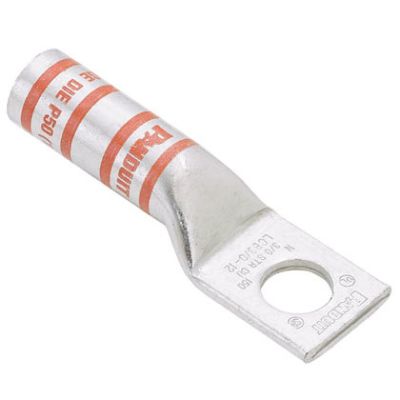

Panduit LCB8-38-L

Panduit Pan-Lug LCB8-38-L 1-Hole Compression Connector Lug, 8 AWG Stranded Copper Conductor, Die Code: P21, 42.95 in Stud, Tin Plated Copper
Lug Compression Connectors
6799925 LCB8-38-L
Panduit
$0.00 / ea

Panduit LCB8-38-L
  • Barrel Size: 0.18 in ID x 0.27 in OD x 0.7 in L
  • Barrel Type: Long
  • Color: Red
  • Conductor size: 8
  • Conductor Type: Stranded Copper
  • Die Code: P21
  • Material: Tin Plated Copper
  • Mounting Hole Size: 42.828
  • Overall Length: 1-3/4
  • Series: LCB
  • Specifications: 3/4 in L Wire Strip
  • Stud Size: 42.95
  • Temperature Rating: 90
  • Tongue Size: 0.6 in W x 0.05 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCB, Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 42.95 in Stud, Straight Tongue, 0.6 in W x 0.05 in THK Tongue, 1-3/4 in Overall Length, Long Barrel, 0.18 in ID x 0.27 in OD x 0.7 in L Barrel, 3/4 in L Wire Strip, 90 deg C, 42.828 in Mounting Hole, Tin Plated Copper, Red
QTY
Add to Wishlist
  • Features
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • High conductivity seamless copper tube
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • Without inspection window
