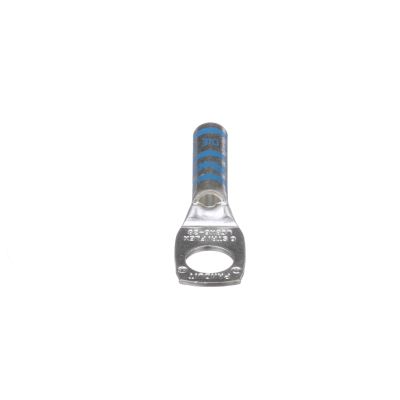

Panduit LCBX6-38-L
One-hole, flex lug, long barrel, #6 AWG, 3/8 stud hole.
Supporting Information
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance|Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive|Generously beveled wire entry prevents bent back strands when inserting conductor into barrel|Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection|Inspection window to visually assure full conductor insertion|Tin-plated to inhibit corrosion|For use with flexible, extra-flexible and code stranded copper conductors|Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Brand: PanduitBarrel Size: 0.22 in ID x 0.31 in OD x 1.07 in LBarrel Type: Long/StandardColor: BlueConductor size: 6Conductor Type: Extra-Flexible/Flexible/Stranded CopperDie Code: P24
