Panduit LCC1/0-12-X

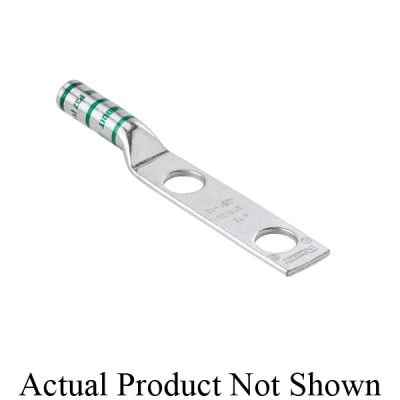

Panduit Pan-Lug LCC1/0-12-X 2-Hole Compression Connector Lug, 1/0 AWG Stranded Copper Conductor, Die Code: P42, 1/2 in Stud, Tin Plated Copper
Lug Compression Connectors
6886734
LCC1/0-12-X
Panduit
$0.00
/ ea
- Barrel Size: 0.39 in ID x 0.52 in OD x 1.44 in L
- Barrel Type: Long
- Color: Pink
- Conductor size: 1/0
- Conductor Type: Stranded Copper
- Die Code: P42
- Material: Tin Plated Copper
- Mounting Hole Size: 1-1/2
- Overall Length: 4.86
- Series: LCC
- Specifications: 1-3/4 in Stud Hole Spacing, 1-1/2 in L Wire Strip
- Stud Size: 1/2
- Temperature Rating: 90
- Tongue Size: 0.8 in W x 0.12 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.8 in W x 0.12 in THK Tongue, 4.86 in Overall Length, Long Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, 1-3/4 in Stud Hole Spacing, 1-1/2 in L Wire Strip, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Pink
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Without inspection window
