Panduit LCC10-14AW-L

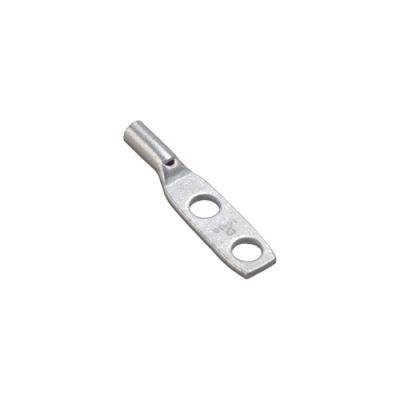

Panduit Pan-Lug LCC10-14AW-L LCC-W 2-Hole Compression Connector Lug With Inspection Window, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, 1/4 in Stud, Tin Plated Copper
Lug Compression Connectors
7032561
LCC10-14AW-L
Panduit
$0.00
/ ea
- Barrel Size: 0.13 in ID x 0.22 in OD x 0.53 in L
- Barrel Type: Inspection Window/Long
- Conductor size: 14 to 10 AWG, 12 to 10 AWG
- Conductor Type: Solid/Stranded Copper
- Material: Tin Plated Copper
- Mounting Hole Size: 9/16
- Overall Length: 1.93
- Series: LCC-W
- Specifications: 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip
- Stud Size: 1/4
- Temperature Rating: 90
- Tongue Size: 0.42 in W x 0.05 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Solid/Stranded Copper Conductor, 14 to 10 AWG, 12 to 10 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 0.42 in W x 0.05 in THK Tongue, 1.93 in Overall Length, Long/Inspection Window Barrel, 0.13 in ID x 0.22 in OD x 0.53 in L Barrel, 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip, 90 deg C, 9/16 in Mounting Hole, Tin Plated Copper
- Features
- Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin-plated to inhibit corrosion
- For use with stranded copper conductor
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
