Panduit LCC2/0-38D-X

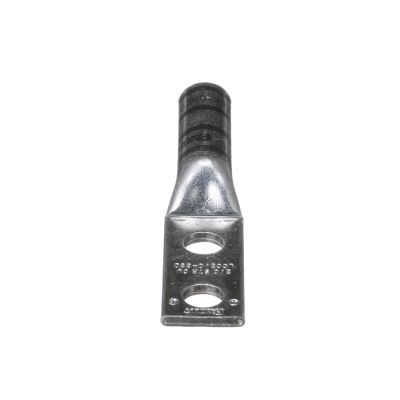

Panduit Pan-Lug LCC2/0-38D-X 2-Hole Compression Connector Lug, 2/0 AWG Stranded Copper Conductor, Die Code: P45, 42.95 in Stud, Tin Plated Copper
Lug Compression Connectors
7596702
LCC2/0-38D-X
Panduit
$0.00
/ ea
- Barrel Size: 0.45 in ID x 0.58 in OD x 1.5 in L
- Barrel Type: Long
- Color: Black
- Conductor size: 2/0
- Conductor Type: Stranded Copper
- Die Code: P45
- Material: Tin Plated Copper
- Mounting Hole Size: 1.56
- Overall Length: 3.82
- Series: LCC
- Specifications: 1 in Stud Hole Spacing, 1-9/16 in L Wire Strip
- Stud Size: 42.95
- Temperature Rating: 90
- Tongue Size: 0.85 in W x 0.13 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 42.95 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 3.82 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, 1 in Stud Hole Spacing, 1-9/16 in L Wire Strip, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Black
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Without inspection window
