Panduit LCC2-38-Q

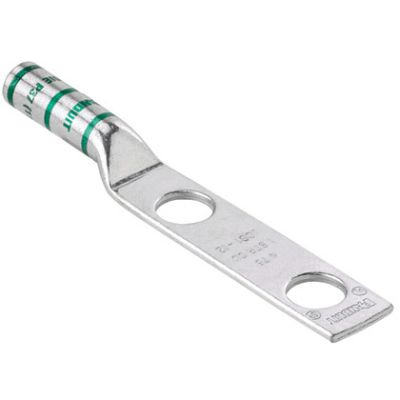

Panduit Pan-Lug LCC2-38-Q 2-Hole Compression Connector Lug, 2 AWG Stranded Copper Conductor, Die Code: P33, 42.95 in Stud, Tin Plated Copper
Lug Compression Connectors
6896925
LCC2-38-Q
Panduit
$0.00
/ ea
- Barrel Size: 0.31 in ID x 0.42 in OD x 1.16 in L
- Barrel Type: Long
- Color: Brown
- Conductor size: 2
- Conductor Type: Stranded Copper
- Die Code: P33
- Material: Tin Plated Copper
- Mounting Hole Size: 1-1/4
- Overall Length: 4.09
- Series: LCC
- Specifications: 1-1/4 in L Wire Strip, 1-3/4 in Stud Hole Spacing
- Stud Size: 42.95
- Temperature Rating: 90
- Tongue Size: 0.66 in W x 0.1 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 42.95 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 4.09 in Overall Length, Long Barrel, 0.31 in ID x 0.42 in OD x 1.16 in L Barrel, 1-1/4 in L Wire Strip, 1-3/4 in Stud Hole Spacing, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Brown
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Without inspection window
