Panduit LCC250-38DW-X

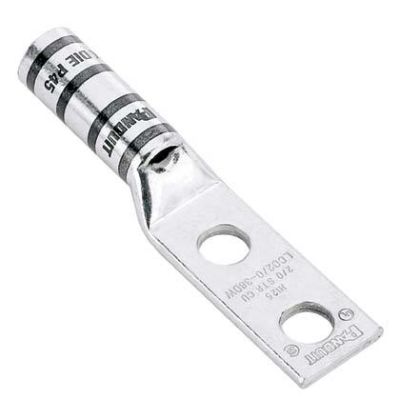

Panduit Pan-Lug LCC250-38DW-X LCC-W 2-Hole Compression Connector Lug, 250 kcmil Stranded Copper Conductor, Die Code: P62, 42.95 in Stud, Tin Plated Copper
Lug Compression Connectors
7008540
LCC250-38DW-X
Panduit
$0.00
/ ea
- Barrel Size: 0.63 in ID x 0.77 in OD x 1.61 in L
- Barrel Type: Long
- Color: Yellow
- Conductor size: 250
- Conductor Type: Stranded Copper
- Die Code: P62
- Material: Tin Plated Copper
- Mounting Hole Size: 1.69
- Overall Length: 3.89
- Series: LCC-W
- Specifications: 1 in Stud Hole Spacing, 1-11/16 in L Wire Strip
- Stud Size: 42.95
- Temperature Rating: 90
- Tongue Size: 1.17 in W x 0.14 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 42.95 in Stud, Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 3.89 in Overall Length, Long Barrel, 0.63 in ID x 0.77 in OD x 1.61 in L Barrel, 1 in Stud Hole Spacing, 1-11/16 in L Wire Strip, 90 deg C, 1.69 in Mounting Hole, Tin Plated Copper, Yellow
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
