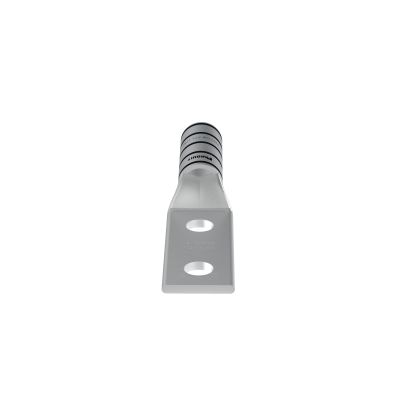

Panduit LCC350-12W-X
Panduit Pan-Lug Compression Lug Connector, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 1/2 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 5.76 in Overall Length, Long/Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 2.24 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-5/16 in L Wire Strip, Tin Plated, 90 deg C, 2-5/16 in Mounting Hole, Tin Plated Copper, Red
Supporting Information
- The long barrel maximizes the number of crimps and provides premium wire pullout strength and performance|Inspection window to visually assure full conductor insertion|color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection|Tin-plated to inhibit corrosion|For use with stranded copper conductor|Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V|The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel
- Brand: Panduit
