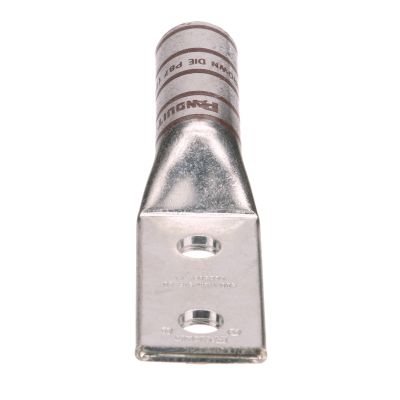

Panduit LCC500-12-6

Panduit Pan-Lug LCC500-12-6 2-Hole Compression Lug Connector, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Copper
Lug Compression Connectors
29391 LCC500-12-6
Panduit
$0.00 / ea

Panduit LCC500-12-6
  • Barrel Size: 0.84 in ID x 1.06 in OD x 2.5 in L
  • Barrel Type: Long/Without Inspection Window/Standard
  • Color: Brown
  • Conductor size: 500
  • Conductor Type: Stranded Copper
  • Die Code: P87
  • Material: Copper
  • Mounting Hole Size: 2-5/8
  • Overall Length: 6.36
  • Series: LCC
  • Specifications: 1-3/4 in Stud Hole Spacing, 2-9/16 in L Wire Strip, Tin Plated
  • Stud Size: 1/2
  • Temperature Rating: 90
  • Tongue Size: 1.54 in W x 0.22 in THK
  • Tongue Type: Standard/Straight
  • Type: 2-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Lug Connector, 2-Hole, Series: LCC, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 6.36 in Overall Length, Long/Standard without Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 2.5 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 2-9/16 in L Wire Strip, Tin Plated, 90 deg C, 2-5/8 in Mounting Hole, Copper, Brown
QTY
Add to Wishlist
  • Features
  • Straight angle
  • Inspection window
  • color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Tin-plated to inhibit corrosion
  • For use with stranded copper conductor
  • The long barrel maximizes the number of crimps and provides premium wire pullout strength and performance
  • The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environment
  • 1-3/4 in hole spacing
  • Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
