Panduit LCC6-38BW-L

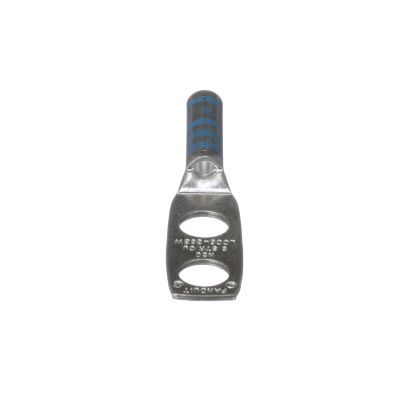

Panduit Pan-Lug LCC6-38BW-L LCC-W 2-Hole Compression Connector Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 3/8 in Stud, Tin Plated Copper
Lug Compression Connectors
7607446
LCC6-38BW-L
Panduit
$0.00
/ ea
- Barrel Size: 0.22 in ID x 0.31 in OD x 1.07 in L
- Barrel Type: Long
- Color: Blue
- Conductor size: 6
- Conductor Type: Stranded Copper
- Die Code: P24
- Material: Tin Plated Copper
- Mounting Hole Size: 1.13
- Overall Length: 2.83
- Series: LCC-W
- Specifications: 1-1/8 in L Wire Strip, 3/4 in Stud Hole Spacing
- Stud Size: 3/8
- Temperature Rating: 90
- Tongue Size: 0.62 in W x 0.06 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.06 in THK Tongue, 2.83 in Overall Length, Long Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, 1-1/8 in L Wire Strip, 3/4 in Stud Hole Spacing, 90 deg C, 1.13 in Mounting Hole, Tin Plated Copper, Blue
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
