Panduit LCC6-56BW-L

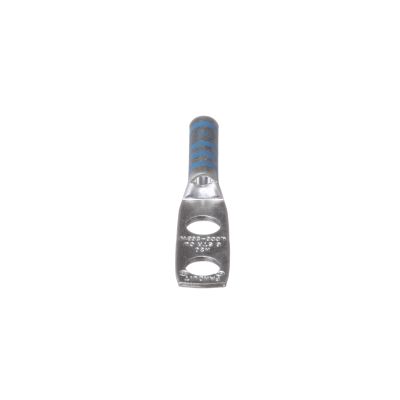

Panduit Pan-Lug LCC6-56BW-L 2-Hole Compression Connector Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 5/16 in Stud, Tin Plated Copper
Lug Compression Connectors
7752797 LCC6-56BW-L
Panduit
$0.00 / ea

Panduit LCC6-56BW-L
  • Barrel Size: 1.07 in L
  • Barrel Type: Long
  • Color: Blue
  • Conductor size: 6
  • Conductor Type: Stranded Copper
  • Die Code: P24
  • Material: Tin Plated Copper
  • Mounting Hole Size: 1.13
  • Overall Length: 2.73
  • Series: LCC
  • Specifications: 3/4 in Stud Hole Spacing
  • Stud Size: 5/16
  • Temperature Rating: 90
  • Tongue Size: 0.56 in W x 0.07 in THK
  • Tongue Type: Straight
  • Type: 2-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 5/16 in Stud, Straight Tongue, 0.56 in W x 0.07 in THK Tongue, 2.73 in Overall Length, Long Barrel, 1.07 in L Barrel, 3/4 in Stud Hole Spacing, 90 deg C, 1.13 in Mounting Hole, Tin Plated Copper, Blue
QTY
Add to Wishlist
  • Features
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • Without inspection window lug
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
