Panduit LCCF600-12-6

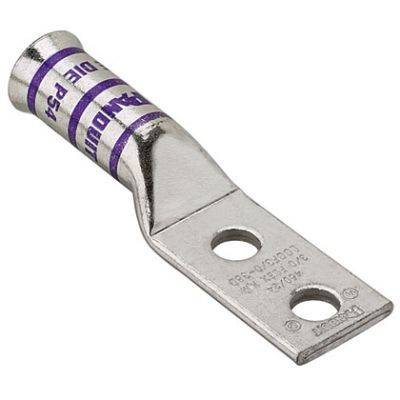

Panduit Pan-Lug LCCF600-12-6 2-Hole Compression Connector Lug, 646.4 kcmil Extra-Flexible/Flexible Copper Conductor, Die Code: P106, 42.767 in Stud, Copper
Lug Compression Connectors
7137007 LCCF600-12-6
Panduit
$0.00 / ea

Panduit LCCF600-12-6
  • Barrel Size: 1.05 in ID x 1.62 in OD x 2.94 in L
  • Barrel Type: Flared/Long
  • Color: Black
  • Conductor size: 646.4
  • Conductor Type: Extra-Flexible/Flexible Copper
  • Die Code: P106
  • Material: Copper
  • Mounting Hole Size: 3
  • Overall Length: 7.13
  • Series: LCCF
  • Specifications: 1-3/4 in Stud Hole Spacing, 3 in Wire Strip, Tin Plated Finish
  • Stud Size: 42.767
  • Temperature Rating: 90
  • Tongue Size: 1.95 in W x 0.29 in THK
  • Tongue Type: Straight
  • Type: 2-Hole
  • Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCCF, Extra-Flexible/Flexible Copper Conductor, 646.4 kcmil Conductor, Die Code: P106, 35 kV, 42.767 in Stud, Straight Tongue, 1.95 in W x 0.29 in THK Tongue, 7.13 in Overall Length, Flared/Long Barrel, 1.05 in ID x 1.62 in OD x 2.94 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 3 in Wire Strip, Tin Plated Finish, 90 deg C, 3 in Mounting Hole, Copper, Black
QTY
Add to Wishlist
  • Features
  • Color-coded barrels marked with Panduit® die index numbers for proper crimp die selection
  • Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin-plated to inhibit corrosion
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • Can be used with flex conductor class K, M and diesel locomotive
  • For Use with flexible and extra-flexible copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
