Panduit LCCN750-12W-6

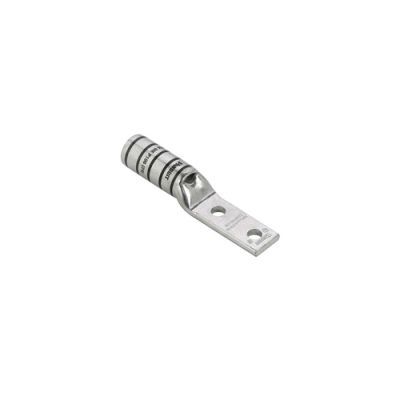

Panduit Pan-Lug LCCN750-12W-6 LCC-W 2-Hole Compression Connector Lug, 750 kcmil Stranded Copper Conductor, Die Code: P106, 1/2 in Stud, Tin Plated Copper
Lug Compression Connectors
7034347
LCCN750-12W-6
Panduit
$0.00
/ ea
- Barrel Size: 1.03 in ID x 1.30 in OD x 2.88 in L
- Barrel Type: Long
- Color: Black
- Conductor size: 750
- Conductor Type: Stranded Copper
- Die Code: P106
- Material: Tin Plated Copper
- Mounting Hole Size: 2.94
- Overall Length: 6.66
- Series: LCC-W
- Specifications: 1-3/4 in Stud Hole Spacing, 2-15/16 in L Wire Strip
- Stud Size: 1/2
- Temperature Rating: 90
- Tongue Size: 1.3 in W x 0.28 in THK
- Tongue Type: Straight
- Type: 2-Hole
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 750 kcmil Conductor, Die Code: P106, 35 kV, 1/2 in Stud, Straight Tongue, 1.3 in W x 0.28 in THK Tongue, 6.66 in Overall Length, Long Barrel, 1.03 in ID x 1.30 in OD x 2.88 in L Barrel, 1-3/4 in Stud Hole Spacing, 2-15/16 in L Wire Strip, 90 deg C, 2.94 in Mounting Hole, Tin Plated Copper, Black
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
