Panduit LCMA150-10-X

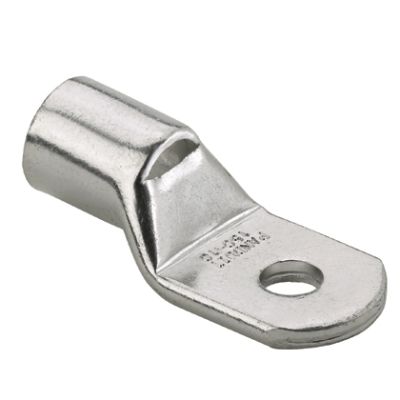

Panduit Pan-Lug LCMA150-10-X 1-Hole Metric Compression Connector Lug, 150 sq-mm Rigid/Stranded Copper Conductor, Die Code: P66, M10 Stud, Tin Plated Copper
Lug Compression Connectors
7071916
LCMA150-10-X
Panduit
$0.00
/ ea
- Barrel Size: 16.5 mm ID x 70.5 mm OD x 27.5 mm L
- Barrel Type: Standard
- Conductor size: 150
- Conductor Type: Rigid/Stranded Copper
- Die Code: P66
- Material: Tin Plated Copper
- Mounting Hole Size: 11
- Overall Length: 70.5
- Series: LCMA
- Specifications: 18 mm Wrench Clearance, 29 mm L Wire Strip
- Stud Size: M10
- Temperature Rating: 90
- Tongue Size: 30.5 mm W x 4.5 mm THK
- Tongue Type: Round/Straight
- Type: 1-Hole Metric
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole Metric, Series: LCMA, Rigid/Stranded Copper Conductor, 150 sq-mm Conductor, Die Code: P66, 35 kV, M10 Stud, Round/Straight Tongue, 30.5 mm W x 4.5 mm THK Tongue, 70.5 mm Overall Length, Standard Barrel, 16.5 mm ID x 70.5 mm OD x 27.5 mm L Barrel, 18 mm Wrench Clearance, 29 mm L Wire Strip, 90 deg C, 11 mm Mounting Hole, Tin Plated Copper
- Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installations
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installations
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
