Panduit LCMA35-12-C

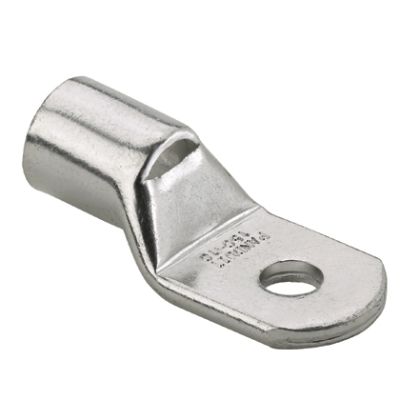

Panduit Pan-Lug LCMA35-12-C 1-Hole Metric Compression Connector Lug, 185 sq-mm Rigid/Stranded Copper Conductor, Die Code: P29, M12 Stud, Tin Plated Copper
Lug Compression Connectors
6972694
LCMA35-12-C
Panduit
$0.00
/ ea
- Barrel Size: 8.2 mm ID x 10.4 mm OD x 17.5 mm L
- Barrel Type: Seamless/Standard
- Conductor size: 185
- Conductor Type: Rigid/Stranded Copper
- Die Code: P29
- Material: Tin Plated Copper
- Mounting Hole Size: 14
- Overall Length: 48
- Series: LCMA
- Specifications: 14.5 mm Wrench Clearance, 19 mm L Wire Strip
- Stud Size: M12
- Temperature Rating: 90
- Tongue Size: 21.5 mm W x 1.5 mm THK
- Tongue Type: Round/Straight
- Type: 1-Hole Metric
- Voltage Rating: 35
Panduit Pan-Lug Compression Connector Lug, 1-Hole Metric, Series: LCMA, Rigid/Stranded Copper Conductor, 185 sq-mm Conductor, Die Code: P29, 35 kV, M12 Stud, Round/Straight Tongue, 21.5 mm W x 1.5 mm THK Tongue, 48 mm Overall Length, Seamless/Standard Barrel, 8.2 mm ID x 10.4 mm OD x 17.5 mm L Barrel, 14.5 mm Wrench Clearance, 19 mm L Wire Strip, 90 deg C, 14 mm Mounting Hole, Tin Plated Copper
- Features
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Product information marked on connector for selection and installations
- Rounded tongue convenient for use in tight spaces
- Internally beveled wire entry for fast and easy installations
- Color coded barrel
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- For use with class 2 stranded copper conductors
