Panduit S4/0-12R-C

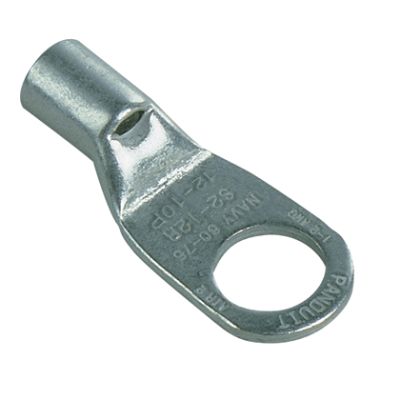

Panduit Pan-Lug S4/0-12R-C S-R Series 1-Hole Loose Piece Non-Insulated Tubular Ring Terminal, 4/0 AWG Conductor, 2-1/2 in L, Beveled/Seamless Barrel, Copper, Metallic
Lug Compression Connectors
7676309
S4/0-12R-C
Panduit
$0.00
/ ea
- Barrel Size: 0.57 in ID x 0.71 in OD x 0.91 in L
- Barrel Type: Beveled/Seamless
- Color: Metallic
- Conductor size: 4/0
- Conductor Type: Stranded
- Finish: Tin Plated
- Length: 2-1/2
- Material: Copper
- Series: S-R Series
- Specifications: 15/16 in L Wire Strip, 15/16 in Mounting Hole
- Stud Size: 1/2
- Temperature Rating: 90
- Tongue Size: 1.06 in W x 0.14 in THK
- Tongue Type: Straight
- Type: 1-Hole Loose Piece Non-Insulated Tubular
- Voltage Rating: 35
Panduit Pan-Lug Ring Terminal, 1-Hole Loose Piece Non-Insulated Tubular, Series: S-R Series, Stranded Conductor, 4/0 AWG Conductor, 1/2 in Stud, 2-1/2 in Length, Beveled/Seamless Barrel, 0.57 in ID x 0.71 in OD x 0.91 in L Barrel, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 35 kVAC, 15/16 in L Wire Strip, 15/16 in Mounting Hole, 90 deg C, Copper, Tin Plated, Metallic
- Features
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
