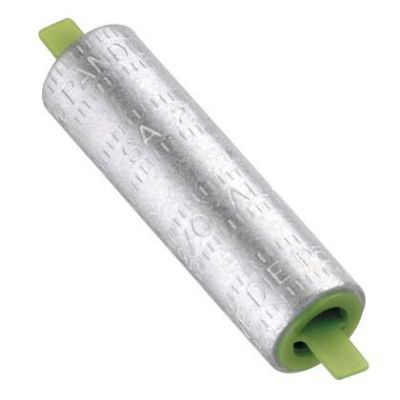

Panduit SA1/0-X
Panduit Pan-Lug Compression Butt Splice, Series: SA Series, Stranded Aluminum/Copper Conductor, 1/0 AWG Conductor, 2.12 in Length, Seamless Barrel, 0.39 in ID x 0.64 in OD Barrel, 35 kV, Specifications: 1 in L Wire Strip, 1 in Mounting Hole, 90 deg C, Aluminum, Tan, Tin Plated
Supporting Information
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection|Internal solid center prevents over-insertion of conductor|Tin-plated to inhibit corrosion|Manufactured from high conductivity thick wall wrought aluminum|Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion|UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
- Color-coded end plug and Panduit® and specified competitor die index numbers marked on barrel for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin-plated to inhibit corrosion
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
- Brand: PanduitBarrel Size: 0.39 in ID x 0.64 in ODBarrel Type: SeamlessColor: TanConductor size: 01/01/2000Conductor Type: Stranded Aluminum/CopperFinish: Tin PlatedLength: 2.12Material: AluminumSeries: SA SeriesSpecifications: 1 in L Wire Strip, 1 in Mounting Hole
