Panduit PCSB250-3-6Y

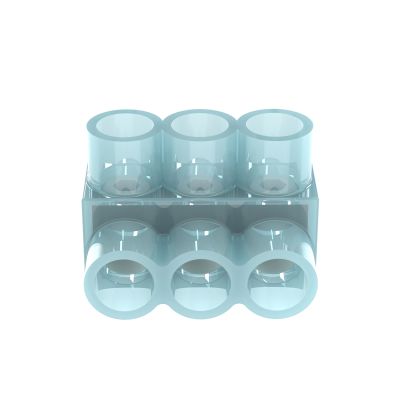

Panduit Pan-Lug PCSB250-3-6Y 3-Port Double Sided Multi-Tap Connector, 10 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, Screw Installation, Aluminum/PVC
Lug Mechanical Connectors
6814737
PCSB250-3-6Y
Panduit
$0.00
/ ea
- Conductor size: 10 AWG to 250 kcmil Aluminum/Copper/Stranded
- Conductor Type: Stranded
- Dimensions: 2.97 in L x 2.63 in W x 2.13 in H
- Installation Type: Screw
- Material: Aluminum/PVC
- Series: PCSB
- Specifications: 5/16 in Hex Key, 275 in-lb Tightening Torque
- Temperature Rating: 90
- Type: 3-Port Double Sided
- Voltage Rating: 600
Panduit Pan-Lug Multi-Tap Connector, 3-Port Double Sided, Series: PCSB, Stranded Conductor, 10 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, Screw Installation, 600 VAC, Specifications: 5/16 in Hex Key, 275 in-lb Tightening Torque, 90 deg C, Aluminum/PVC, 2.97 in L x 2.63 in W x 2.13 in H Dimensions
- Features
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum setscrew provides high strength, durable electrical contact between conductor and connector
