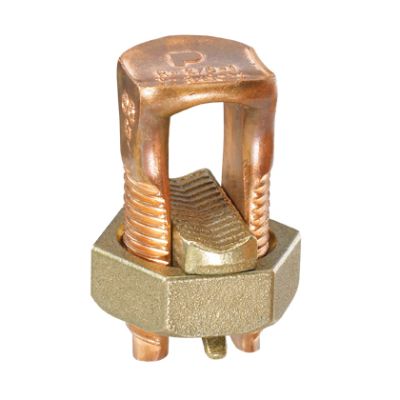

Panduit SBC2/0-Q
Panduit Pan-Lug Split Bolt Mechanical Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 2/0 to 2 AWG Conductor, 600 VAC, Specifications: 1.05 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 385 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.42 in ID x 1.72 in L x 0.79 in W Dimensions
Supporting Information
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance|Wide wire range taking capability minimizes inventory requirements|Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection|Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pullout strength|Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations|Tin-plated to inhibit corrosion and oxidation|True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection|Free floating pressure bar separates conductor of dissimilar materials for secure connection on a full range of conductor combinations|Copper to copper connection|Mechanical lug split bolt copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements|The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pullout strength
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pullout strength
- Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
- Tin-plated to inhibit corrosion and oxidation
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductor of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to copper connection
- Mechanical lug split bolt copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements
- The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pullout strength
- Brand: PanduitConductor size: 2/0 to 2Conductor Type: Stranded CopperDimensions: 0.42 in ID x 1.72 in L x 0.79 in WFinish: Tin Plated
