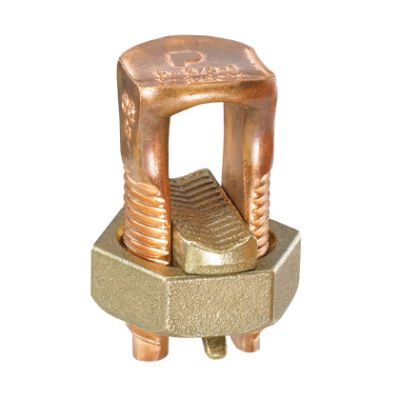

Panduit SBC250-Q

Panduit Pan-Lug SBC250-Q Dual Rated Split Bolt Mechanical Connector, 1 AWG to 250 kcmil Stranded Copper Conductor, Copper
Lug Mechanical Connectors
29569 SBC250-Q
Panduit
$0.00 / ea

Panduit SBC250-Q
  • Conductor size: 1 AWG to 250 kcmil
  • Conductor Type: Stranded Copper
  • Dimensions: 0.58 in ID x 2.09 in L x 1.03 in W
  • Finish: Tin Plated
  • Material: Copper
  • Series: SBC
  • Specifications: 1.36 in Hex Nut, 650 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run
  • Temperature Rating: 90
  • Type: Dual Rated
  • Voltage Rating: 600
Panduit Pan-Lug Split Bolt Mechanical Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 1 AWG to 250 kcmil Conductor, 600 VAC, Specifications: 1.36 in Hex Nut, 650 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run, 90 deg C, Copper, Tin Plated, 0.58 in ID x 2.09 in L x 1.03 in W Dimensions
QTY
Add to Wishlist
  • Features
  • Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
  • Wide wire range taking capability minimizes inventory requirements
  • Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
  • Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pullout strength
  • Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
  • Tin-plated to inhibit corrosion and oxidation
  • True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
  • Free floating pressure bar separates conductor of dissimilar materials for secure connection on a full range of conductor combinations
  • Copper to copper connection
  • Mechanical lug split bolt copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements
  • The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pullout strength
