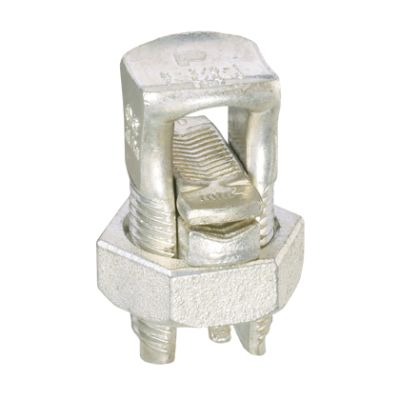

Panduit SBCT1/0-L
Panduit Pan-Lug Split-Bolt Connector, Mechanical, Series: SBCT, Stranded Aluminum/Copper Conductor, 4 to 1/0 AWG Conductor, 600 VAC, Specifications: 0.93 in Hex Nut, 10 AWG Stranded Minimum Tap With One Maximum Run, 385 in-lb Tightening Torque, 90 deg C, Copper, Tin Plated, 0.37 in ID x 1.73 in L Dimensions
Supporting Information
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance|Wide wire range-taking capability minimizes inventory requirements|Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection|Tin-plated to inhibit corrosion and oxidation|Offered with dual rating for use with aluminum or copper conductors|Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations|Copper to aluminum connection
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range-taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Tin-plated to inhibit corrosion and oxidation
- Offered with dual rating for use with aluminum or copper conductors
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to aluminum connection
- Brand: PanduitConductor size: 4 to 1/0Conductor Type: Stranded Aluminum/CopperDimensions: 0.37 in ID x 1.73 in LFinish: Tin PlatedMaterial: CopperSeries: SBCTSpecifications: 0.93 in Hex Nut, 10 AWG Stranded Minimum Tap With One Maximum Run, 385 in-lb Tightening TorqueTemperature Rating: 90Type: MechanicalVoltage Rating: 600
