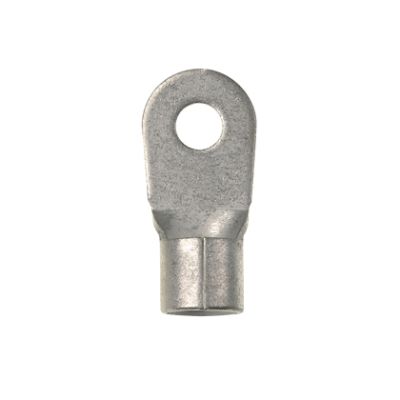

Panduit P4-12R-E
Panduit Pan-Term Ring Terminal, Non-Insulated, Series: P-R Series, Stranded Conductor, 4 AWG Conductor, 1/2 in Stud, 1.55 in Length, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.86 in W x 0.05 in THK Tongue, 2000 V, Specifications: 1/2 in L Wire Strip, 0.53 in Clearance, 0.53 in Mounting Hole, Ring Shape Enclosure, 302 deg F, Copper, Tin Plated, Metallic
Supporting Information
- Ring tongue design assures a secure connection in high vibration applications|Internal barrel serrations assure good wire contact and maximum tensile strength|Insulation support helps to prevent wire damage in bending applications|Brazed seam protects terminal barrel from splitting during the crimp process
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Brand: PanduitBarrel Size: 0.29 in ID x 0.39 in ODBarrel Type: Brazed Seam/Standard/Internal Serration/Insulation SupportColor: MetallicConductor size: 4Conductor Type: StrandedFinish: Tin Plated
