Panduit PMNF2-3F-C

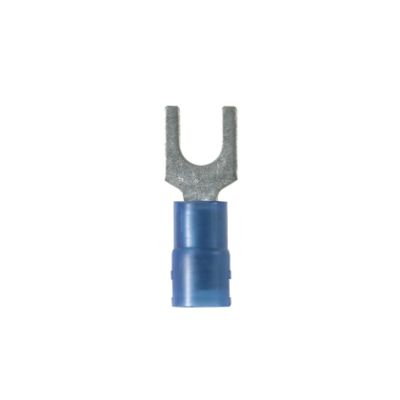

Panduit Pan-Term PMNF2-3F-C Type PMNF-F Loose Piece Metric Fork Terminal, 14 AWG Conductor, 0.78 in L, Funnel Entry/Sleeved Barrel, Copper, Blue
Ring Terminals
6856273
PMNF2-3F-C
Panduit
$0.00
/ ea
- Barrel Type: Funnel Entry/Sleeved
- Color: Blue
- Conductor size: 14
- Conductor Type: Stranded Copper
- Finish: Tin Plated
- Length: 0.78
- Material: Copper
- Specifications: 7/32 in L Wire Strip, 4.11 mm Dia Nylon Insulation, 5.1 mm Clearance, 0.31 in Mounting Hole
- Stud Size: M3
- Temperature Rating: 221
- Tongue Size: 0.23 in W x 0.03 in THK
- Tongue Type: Fork
- Type: Type PMNF-F Loose Piece Metric
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Type PMNF-F Loose Piece Metric, Stranded Copper Conductor, 14 AWG Conductor, M3 Stud, 0.78 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.23 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 7/32 in L Wire Strip, 4.11 mm Dia Nylon Insulation, 5.1 mm Clearance, 0.31 in Mounting Hole, 221 deg F, Copper, Tin Plated, Blue
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
