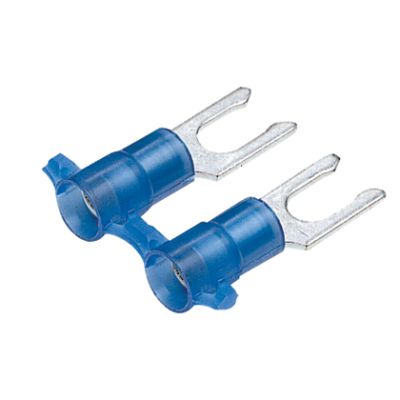

Panduit PN14-8LF-3K
Panduit Pan-Term Reel Smart Fork Terminal, Reel-Fed, Series: PN-LF, Copper Stranded Conductor, #14 Conductor, #8 Stud, 0.92 in Length, Insulation Grip Sleeve Barrel, Locking Fork Tongue, 0.29 in W Tongue, 600 V, Specifications: 0.22 in L Wire Strip, 0.16 in Dia Nylon Insulation, Standard Barrel Configuration, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Supporting Information
- Fork design provides for fast and easy installation, without the need to remove fastener|Internal barrel serrations assure good wire contact and maximum tensile strength|Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications|Brazed seam protects terminal barrel from splitting during the crimp process|Flange design provides extra secure connection on a variety of applications|Barrel of terminal internally beveled to provide quick and easy wire insertion|Non-expanded insulation
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Flange design provides extra secure connection on a variety of applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Non-expanded insulation
- Brand: PanduitBarrel Type: Insulation Grip SleeveColor: BlueConductor size: #14Conductor Type: Copper StrandedFinish: Tin PlatedLength: 0.92Material: CopperSeries: PN-LFSpecifications: 0.22 in L Wire Strip, 0.16 in Dia Nylon Insulation, Standard Barrel Configuration, Fork Shape EnclosureStud Size: #8
